Hotpoint® PTAC with Electric Heat 9000 BTU, 230/208V, 20amp

SKU: HOTPOINT-AH12E09D3B Categories: Appliances, Hotpoint, PTAC

SPECS & DETAILS

APPEARANCE
Color Appearance	White
Installation	Through-the-Wall
CAPACITY
CFM Indoor Fan High	434
CFM Indoor Fan Low	340
CFM Indoor Fan Medium	391
Cooling BTUH (MAX)	9,200 Btu
Cooling BTUH (MIN)	9,000 Btu
Cooling EER (BTUH / Watt)	11.3
FEATURES
“SmartFan” Fan Cycle	Yes
Auto Power Recovery	Yes
Chassis Type	Slide-In

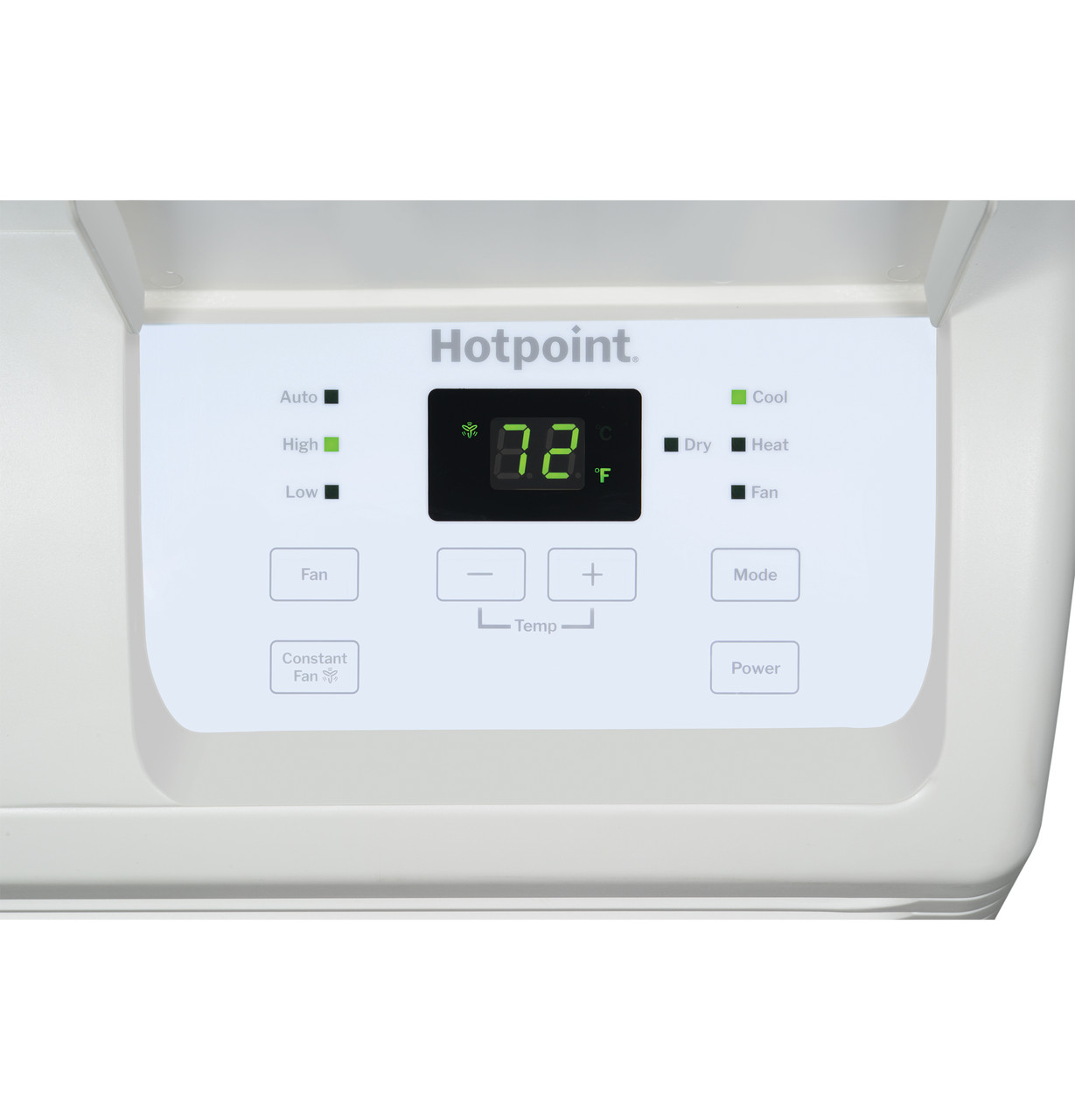

Control Type	Electronic
Discharge Grille	2-position
Fan Motor	2
Fan Speed Selections	3 Cooling 3 Heating 3 Fan Only
Heat – Cool	Yes
Heating System	Electric Resistance
Manual Vent Control	Hidden
Outdoor Vent / Exhaust	Yes
Product Type	Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type	R32
Rotary Compressor	Yes
Temperature Range	62 – 80 F
Unit Features	Freeze Sentinel Automatic Indoor Frost Control Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Power Cord (LCDI) included
Venting Features	Concealed Manual Vent Control Vent Air Filter
POWER / RATINGS
Cooling – Amperes	3.5/3.8
Cooling – Watts	810/795
Heating – Electric – Heater Amps	15.3/13.7
Heating – Electric – Heater Watts	3535/2900
Voltage (MAX)	230 V
Voltage (MIN)	208 V
WARRANTY
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed system
Parts Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	108.7 lb
Net Weight	98.1 lb
Overall Depth	20.90 in
Overall Height	16 in
Overall Width	42.4 in
