Description

ABOUT THIS PRODUCT

  • 3-speed fan
  • 4-temperature limiting options
  • Freeze and frost protection
  • Auto power recovery
3-speed fan

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

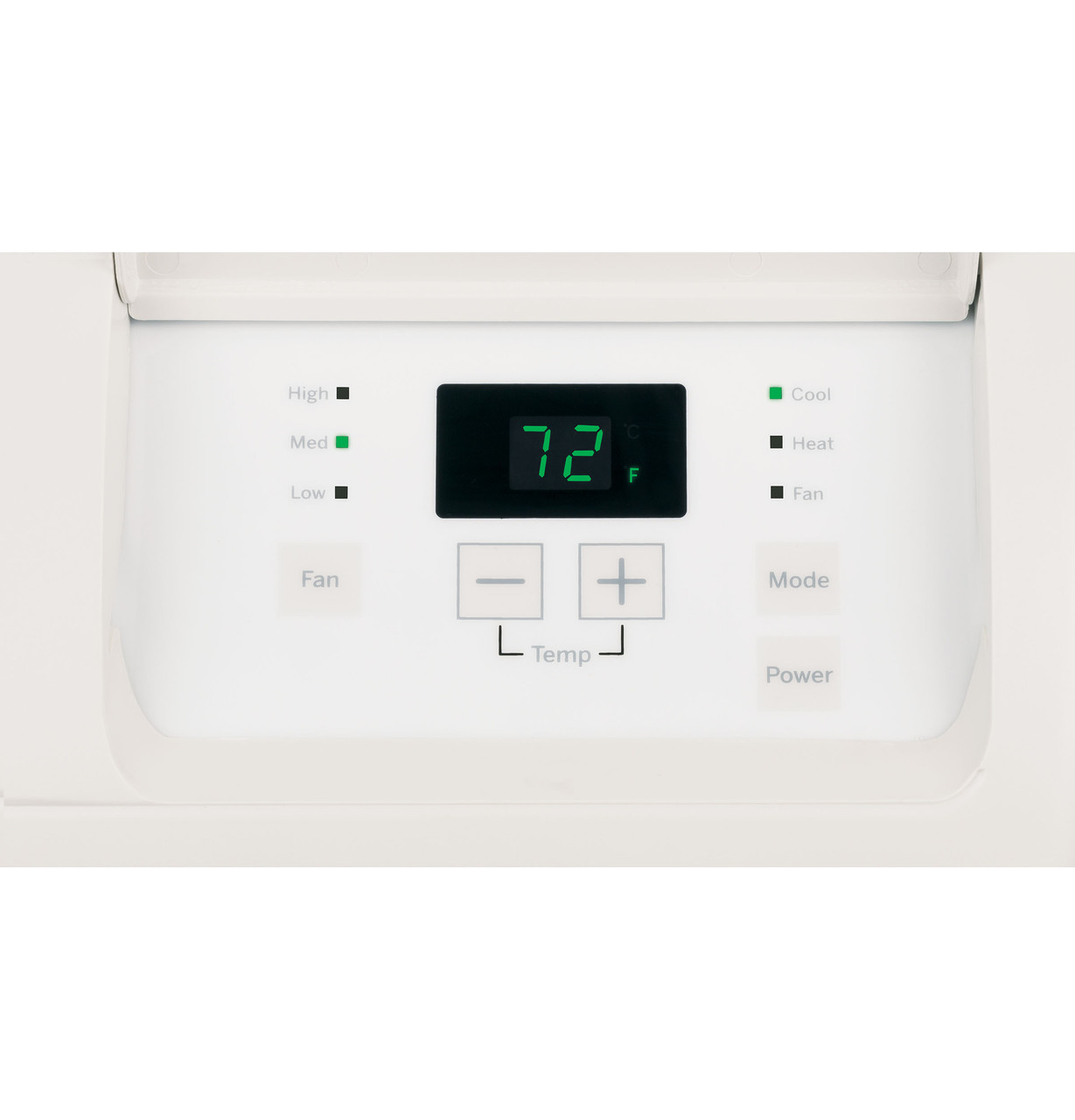

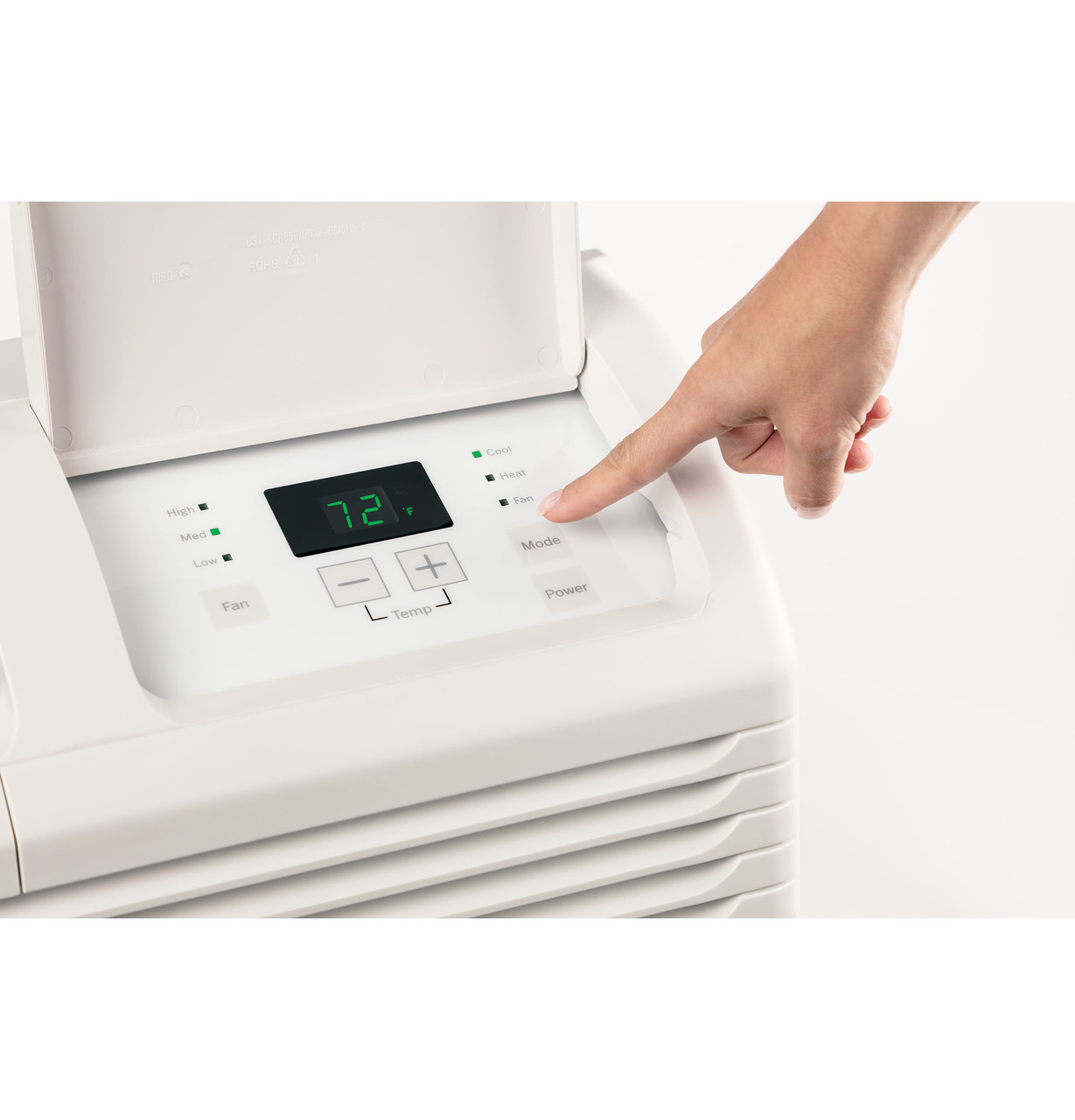

Intuitive display

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available



SPECS & DETAILS

APPEARANCE

Color Appearance White
Installation Through-the-Wall

CAPACITY

CFM Indoor Fan High 335
CFM Indoor Fan Low 240
CFM Indoor Fan Medium 281
Cooling BTUH (MAX) 7,200 Btu
Cooling BTUH (MIN) 6,800 Btu
Cooling EER (BTUH / Watt) 11.9
Heating – Reverse Cycle – BTUH 6000/5800

FEATURES

“SmartFan” Fan Cycle Yes
Auto Power Recovery Yes

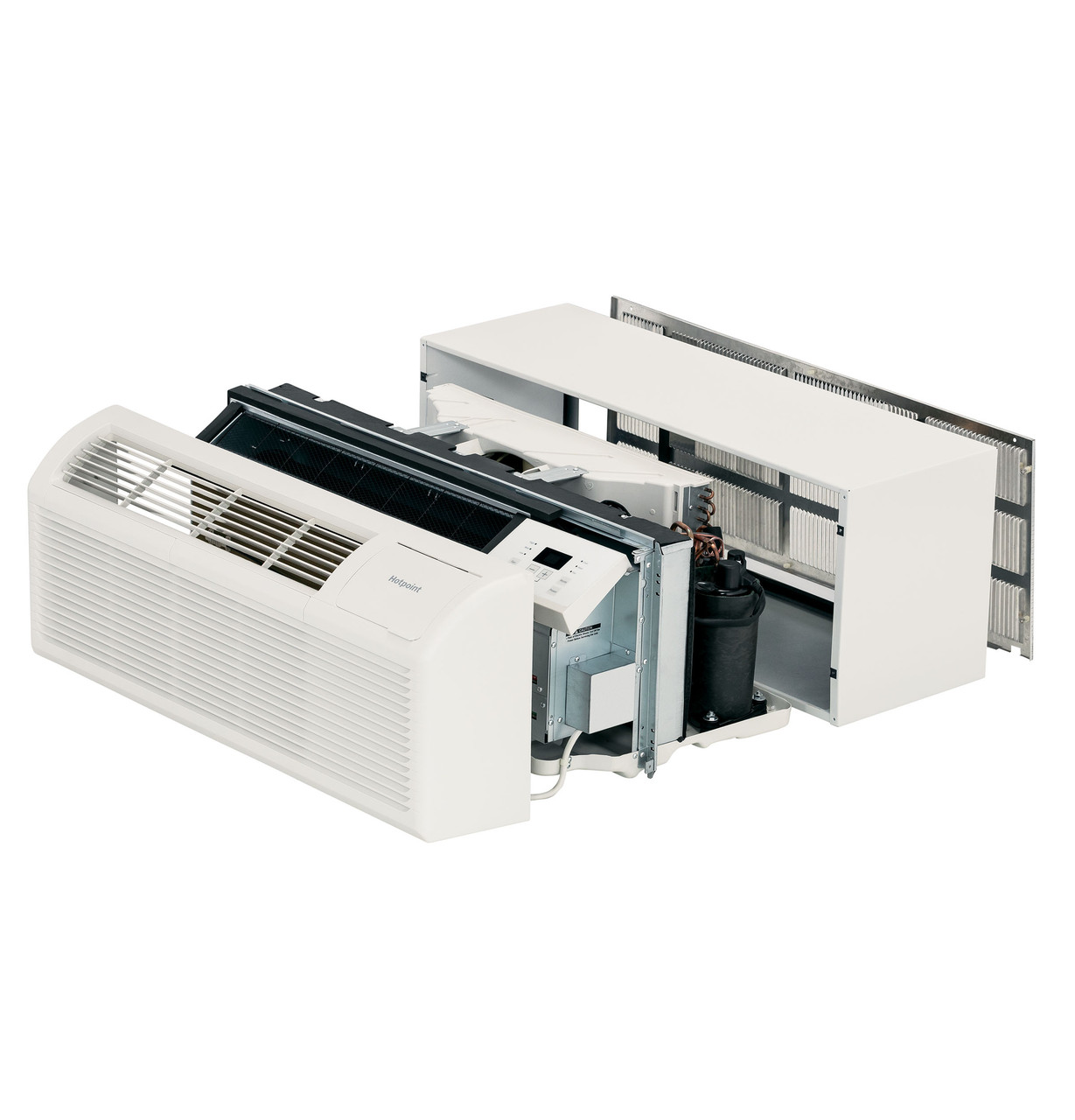

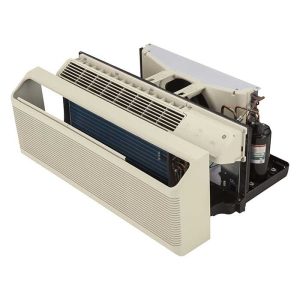

Chassis Type Slide-In
Control Type Electronic
Discharge Grille 2-position
Fan Motor 2
Fan Speed Selections 3 Cooling
3 Heating
3 Fan Only
Heat – Cool Yes
Heat Pump Yes
Heating – Reverse Cycle – COP 3.6
Heating System Heat Pump with Resistance Backup
Manual Vent Control Hidden
Outdoor Vent / Exhaust Yes
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R32
Rotary Compressor Yes
Temperature Range 62 – 80 F
Unit Features Freeze Sentinel
Automatic Indoor Frost Control
Heat Pump with Resistance Heat Backup
Automatic Emergency Heat
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Power Cord (LCDI) included
Venting Features Concealed Manual Vent Control

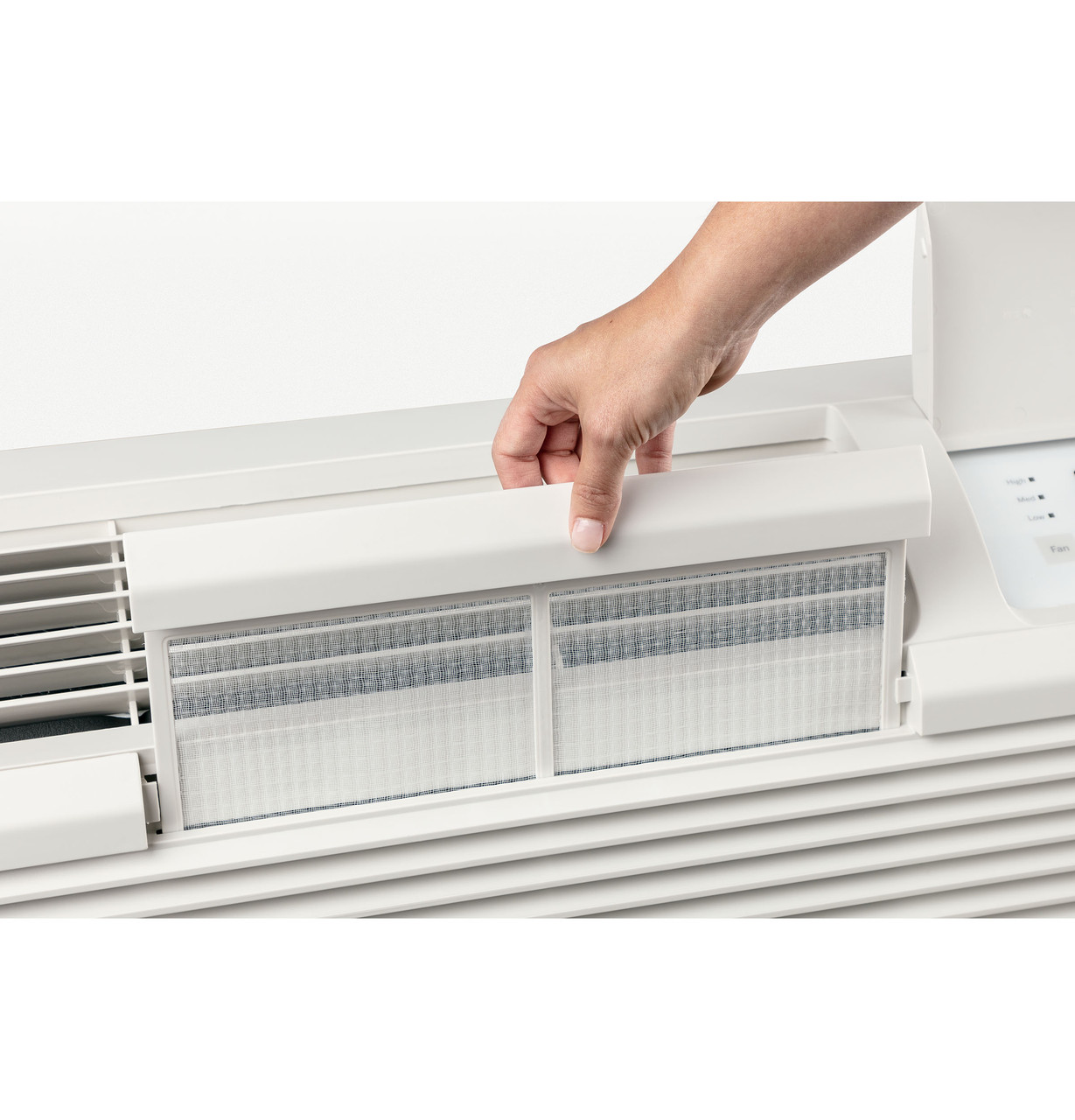

Vent Air Filter

POWER / RATINGS

Cooling – Amperes 2.4/2.6
Cooling – Amperes; F.L. – Cooling 2.7/2.8
Cooling – Watts 605/570
Heating – Electric – Heater Amps 15.3/13.7
Heating – Electric – Heater Watts 3535/2900
Heating – Reverse Cycle – Amps 2.22/2.38
Heating – Reverse Cycle – Watts 515/500
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed system
Parts Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details

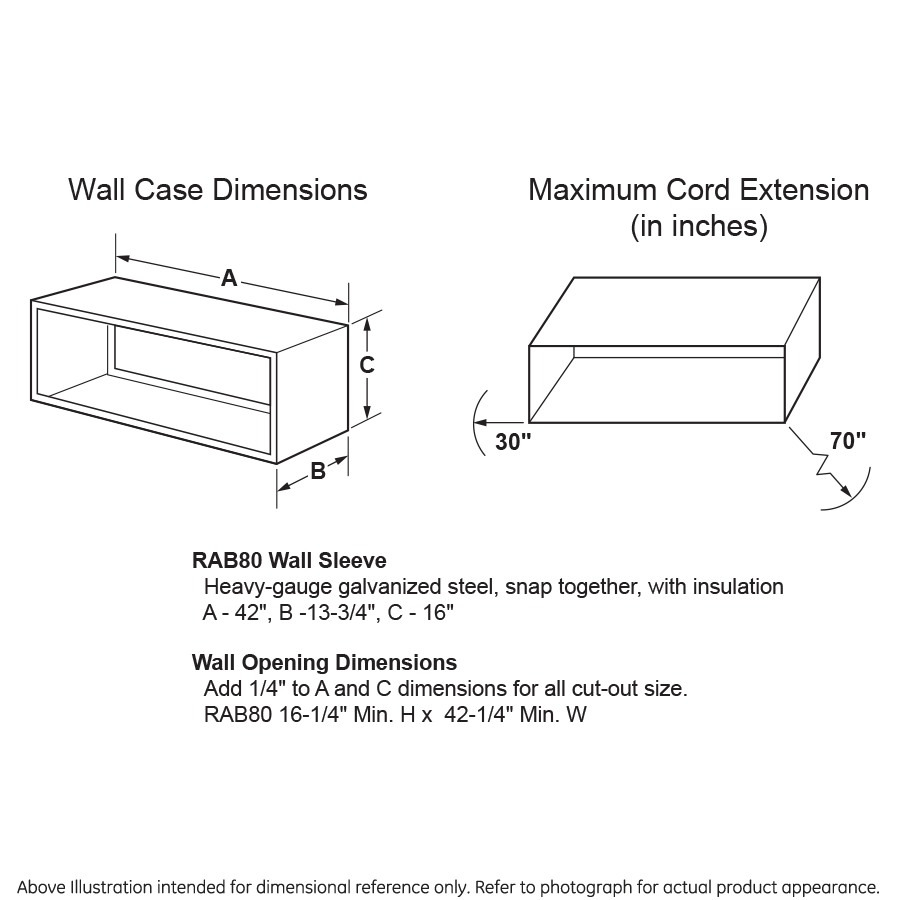

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 115.5 lb
Net Weight 104.7 lb
Overall Depth 20.90 in
Overall Height 16 in
Overall Width 42.4 in
