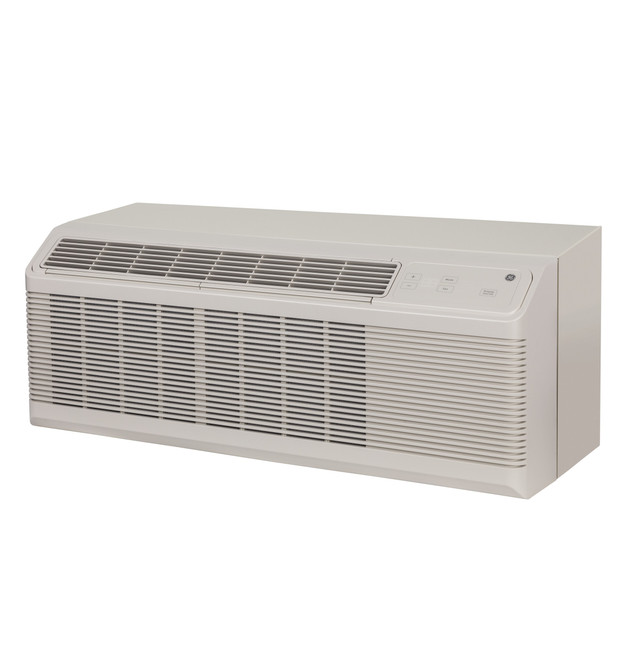

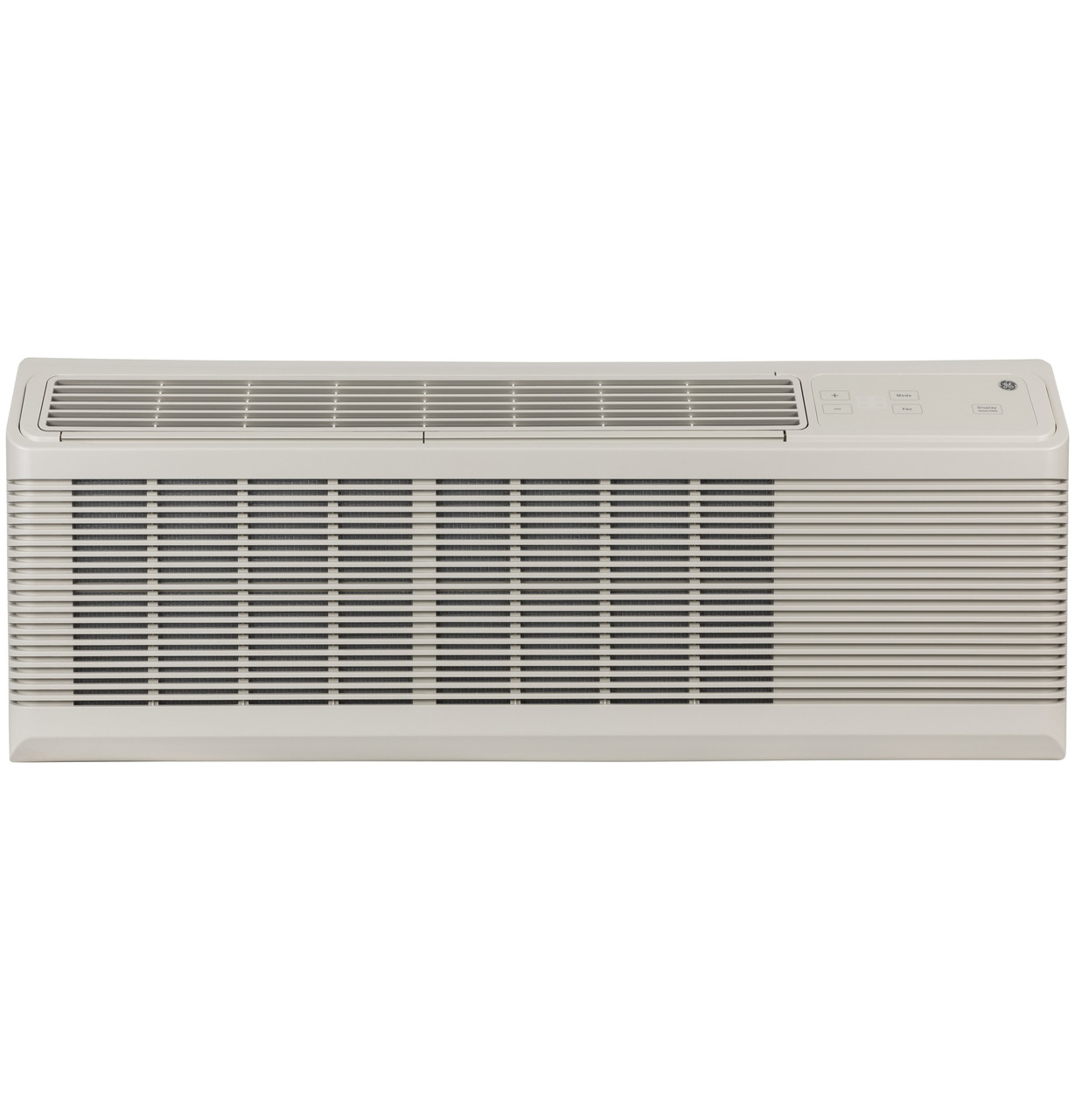

GE Zoneline® Cooling and Electric Heat Unit 9000 BTU, 230/208 Volt

Compare
Add to wishlist
Add to quote
SKU: GE-AZ45E09DAB Category:
Description

ABOUT THIS PRODUCT

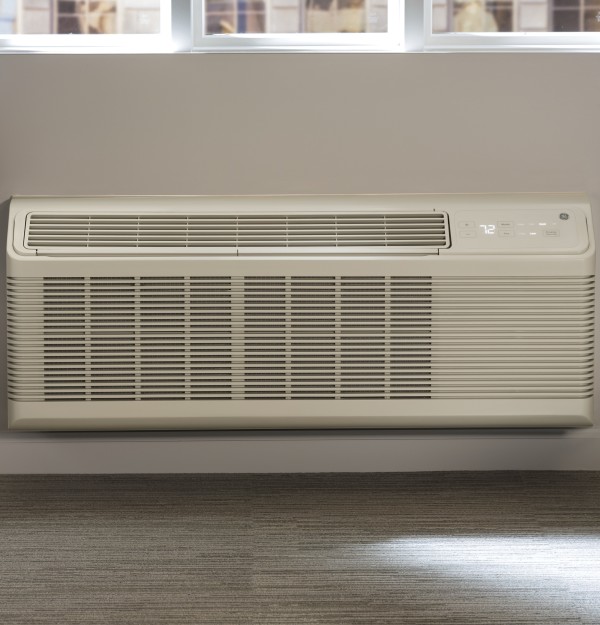

  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Indoor fan CFM (high/low)
Quiet operation

Quiet operation

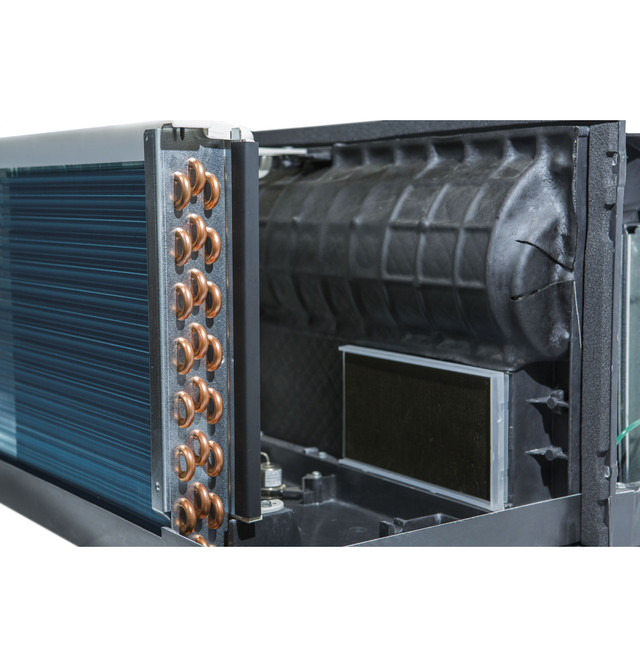

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

Play Video

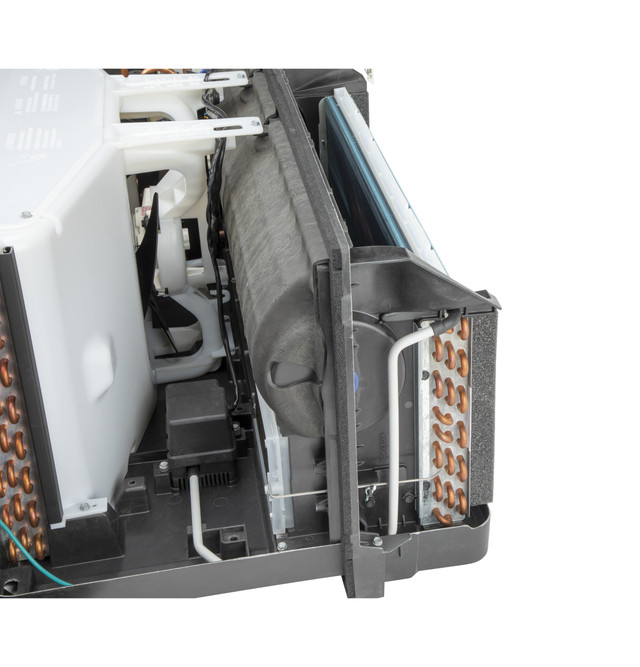

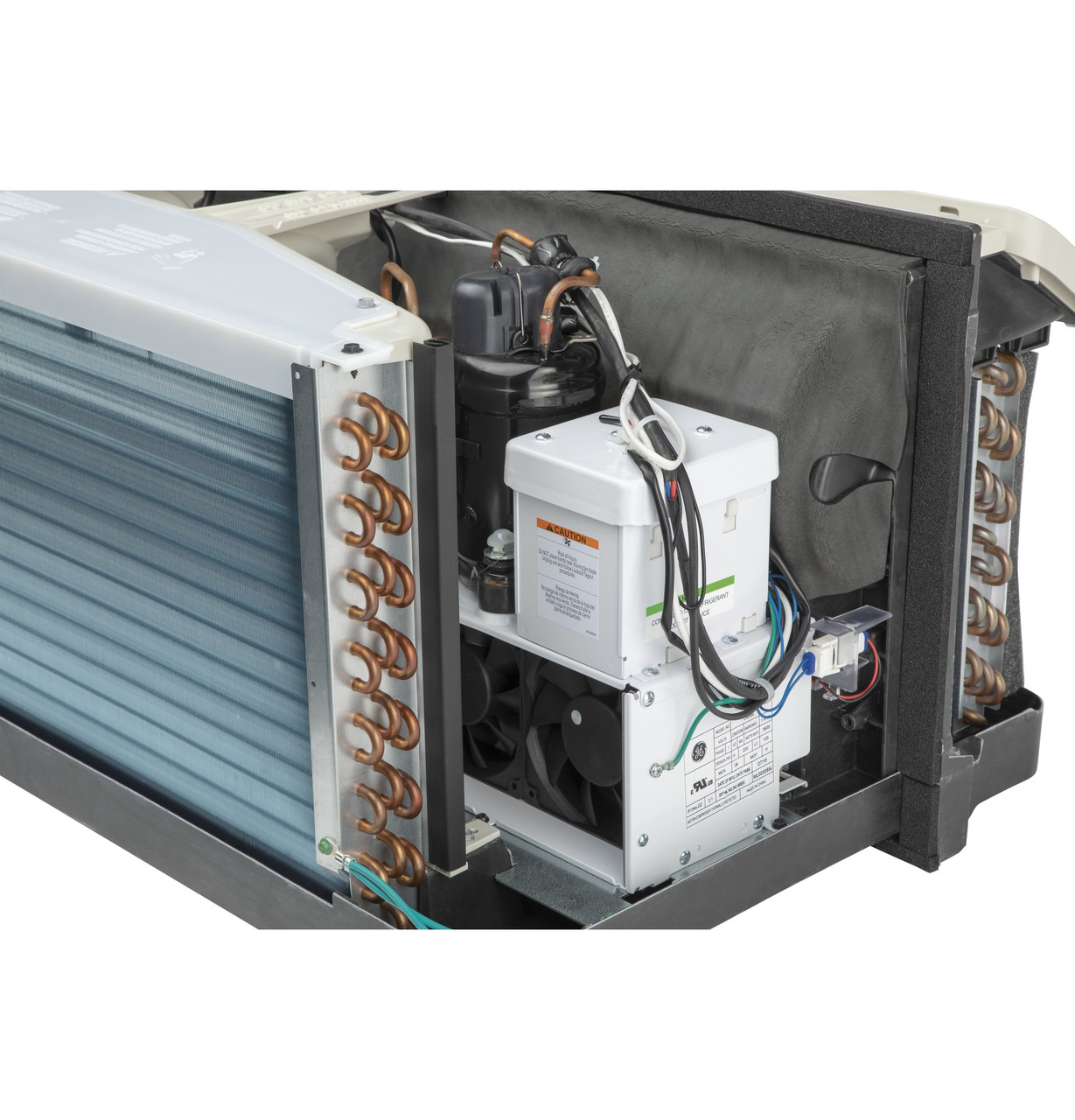

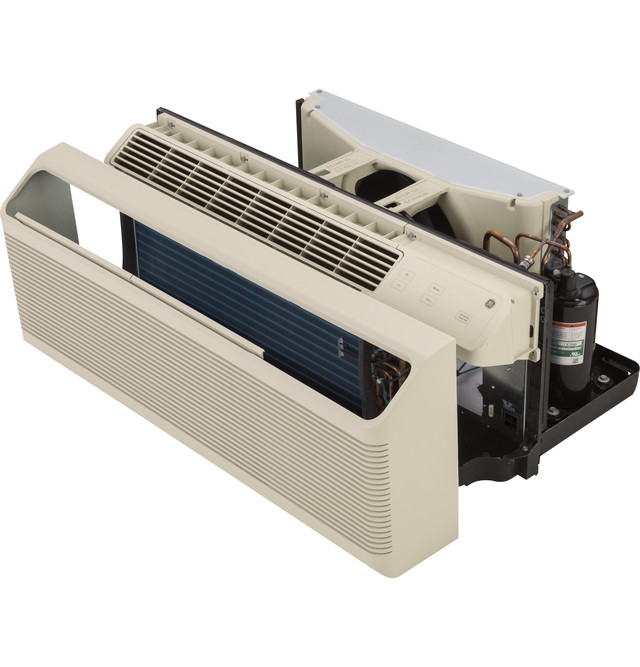

Simplified structure

Simplified structure

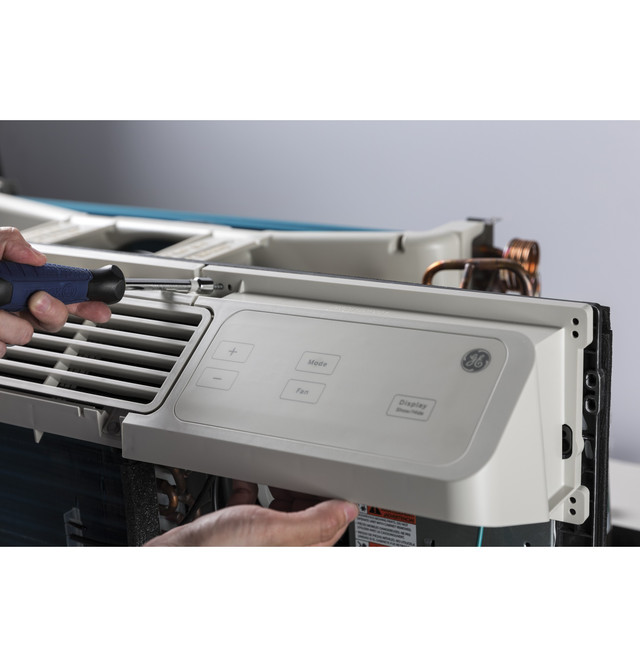

Easy to maintain and service

Play Video

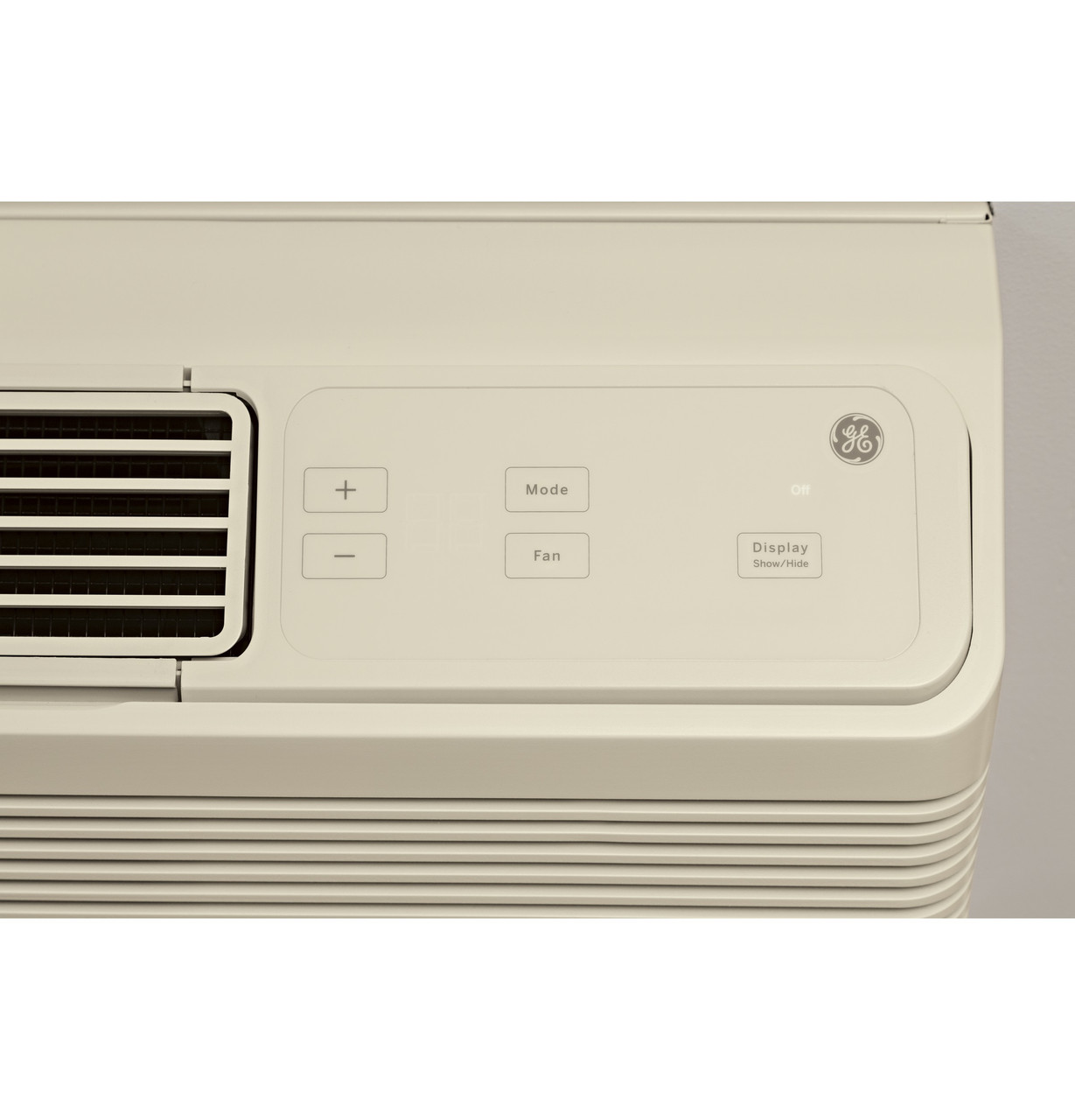

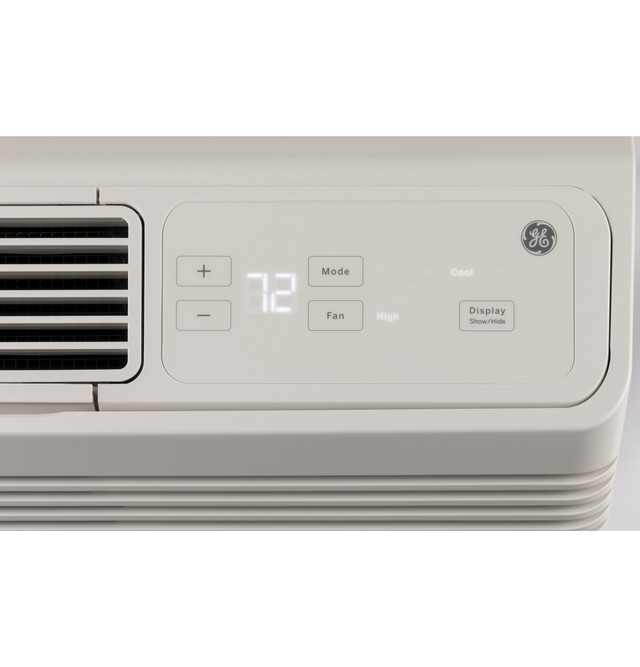

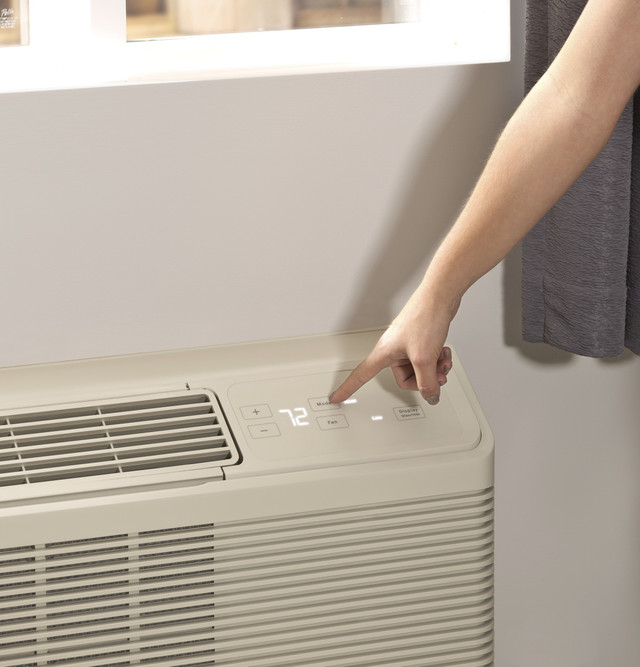

Electronic touch controls with LED display

Electronic touch controls with LED display

Designed & Assembled in America

Designed & Assembled in America

Dehumidification

2.7 pints/hour

Indoor fan CFM (high/low)

409/280

Fresh air vent CFM (fully open high fan)

38

Heat & Freeze Sentinels

Keeps the room from overheating or freezing

Electronic temperature limiting

Prevents expensive over-cooling or over-heating of the room

R-410A refrigerant

SMC base pan



SPECS & DETAILS

APPEARANCE
Color Appearance Gray

CAPACITY
CFM Indoor Fan High 393
CFM Indoor Fan Low 260
Cooling BTUH (MAX) 9,700 Btu
Cooling BTUH (MIN) 9,600 Btu
Cooling EER (BTUH / Watt) 12.1
Dehumidification (pts./hr.) 2.7
Vent CFM (high fan at zero ESP) 38

FEATURES
Chassis Type Slide-In
Control Type Coverless Backlit White LED Touch Controls
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only

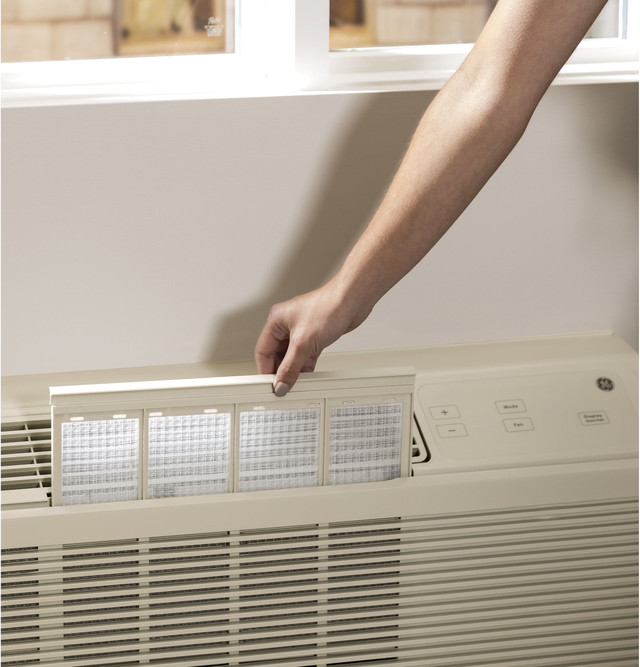

Filter Type Rigid Frame
Slide-Out
Heat – Cool Yes
Heating System Electric Resistance
Louver Style Reversible
Manual Vent Control Hidden
Power Factor 98
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Rotary Compressor Yes
Sensible Heat Ratio 64%
Temperature Limiting Electronic 7-Step
Temperature Range 60 – 85 F
Vent Control 3-position
Venting Features Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control – 3 Positions
Zoneline Features “Smart Fan” Fan Cycle Control

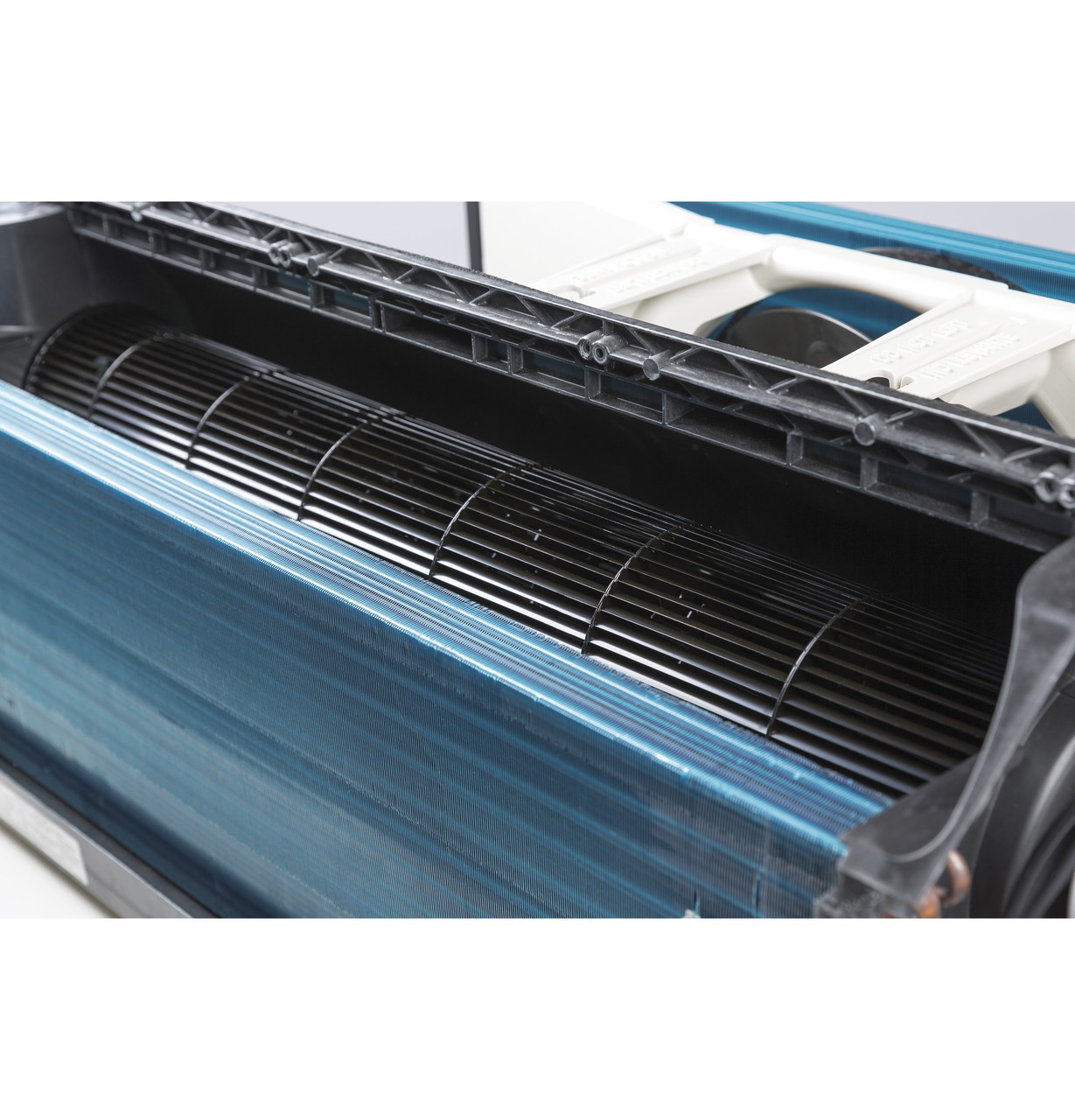

Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
“Sleep” Mode
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional – Integral ID Airflow

POWER / RATINGS
Cooling – Amperes 3.6/3.9
Cooling – Amperes; F.L. – Cooling 3.6/3.9
Cooling – Amperes; L.R. 21
Cooling – Watts 800/790
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed system
Parts Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS
Approximate Shipping Weight 110 lb
Net Weight 110 lb
Overall Depth 20.8125 in
Overall Height 16 in
Overall Width 42 in
